Product Search - Spring Clips / 4545

Download Catalog for Spring Clips / 4545

Spring Clip With Self-Locking Inserts And Tab, Fuse Clip With Self Locking Inserts And Tab, Component Clip With Self Locking Inserts And Tab, Round Component Spring Clip With Self Locking Inserts And Tab

This standard spring clip with self-locking inserts is used to apply spring tension to hold round components in place in an assembly, the tab works as a stop to further keep the component in place and the inserts provide for permanent installation of the clip to the assembly.

Use our Quick Search below to source beryllium copper spring clips and spring steel spring clips from our wide selection of options.

Available Materials: Beryllium Copper, Spring Steel

Customary Finishes: Cadmium Type II (C2), Nickel (N), Silver (S), Bright Tin (T) (other finishes also available)

Not all available materials and finishes are listed in our catalog for every part number. If you require a different material, finish or size, please submit a quote.

If you need additional information on your particular spring clip with self-locking inserts and tab application click on one of the links below:
     View our material & finish specification sheets
     View metallic material characteristic information
     View finish characteristic information

Did you know?Seastrom has extensive custom capabilities in Precision Stamping, CNC Machining, Multi-Spindle Screw Machining, Four-Slide, Water Jet & Laser Part Marking to meet all your requirements. Products can be manufactured in most metallic and non-metallic materials, even hard to find materials. Ask us today!

Quick Search

Material

Min D

Max D

Min L

Max L

All Available PartsOnly Parts in Stock

Don't see what you need?

Click here to revise your search

Click here to request a custom quote

Click on the Column Name to re-sort data.

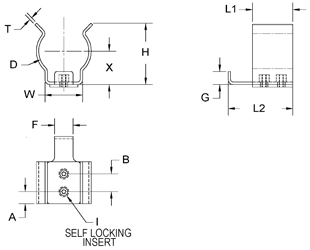

Dimensions in Inches

Product Number	D	L1	L2	T (Stk)	H (Max)	W (Base Max)	X	A	B	F	G	I Self Locking Insert	Finish	Material	Stock	Leadtime	Get Pricing
4545-87-97-1	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40		Beryllium Copper	0	3-4 Weeks	Price
4545-87-97-1-C2	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Cadmium Type II	Beryllium Copper	0	11-12 Weeks	Price
4545-87-97-1-N	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Nickel	Beryllium Copper	22	In Stock - Ready To Ship!	Price
4545-87-97-1-S	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Silver	Beryllium Copper	0	5-6 Weeks	Price
4545-87-97-1-T	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Bright Tin	Beryllium Copper	0	5-6 Weeks	Price
4545-87-97-2	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40		Spring Steel	0	3-4 Weeks	Price
4545-87-97-2-C2	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Cadmium Type II	Spring Steel	0	11-12 Weeks	Price
4545-87-97-2-N	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Nickel	Spring Steel	0	5-6 Weeks	Price
4545-87-97-2-S	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Silver	Spring Steel	0	5-6 Weeks	Price
4545-87-97-2-T	0.875	0.687	0.977	0.032	1.210	0.510	0.625	0.188	0.312	0.250	0.230	4-40	Bright Tin	Spring Steel	0	5-6 Weeks	Price
4545-100-97-1	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40		Beryllium Copper	0	3-4 Weeks	Price
4545-100-97-1-C2	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Cadmium Type II	Beryllium Copper	0	11-12 Weeks	Price
4545-100-97-1-N	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Nickel	Beryllium Copper	0	5-6 Weeks	Price
4545-100-97-1-S	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Silver	Beryllium Copper	0	6-7 Weeks	Price
4545-100-97-1-T	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Bright Tin	Beryllium Copper	0	5-6 Weeks	Price
4545-100-97-2	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40		Spring Steel	7	In Stock - Ready To Ship!	Price
4545-100-97-2-C2	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Cadmium Type II	Spring Steel	0	5-6 Weeks for <= 7 8-9 Weeks for > 7	Price
4545-100-97-2-N	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Nickel	Spring Steel	0	5-6 Weeks	Price
4545-100-97-2-S	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Silver	Spring Steel	0	5-6 Weeks	Price
4545-100-97-2-T	1	0.687	0.977	0.032	1.175	0.510	0.683	0.188	0.312	0.250	0.230	4-40	Bright Tin	Spring Steel	0	5-6 Weeks	Price
4545-137-106-1	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40		Beryllium Copper	0	3-4 Weeks	Price
4545-137-106-1-C2	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Cadmium Type II	Beryllium Copper	0	7-8 Weeks	Price
4545-137-106-1-N	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Nickel	Beryllium Copper	0	5-6 Weeks	Price
4545-137-106-1-S	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Silver	Beryllium Copper	0	5-6 Weeks	Price
4545-137-106-1-T	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Bright Tin	Beryllium Copper	0	5-6 Weeks	Price
4545-137-106-2	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40		Spring Steel	0	3-4 Weeks	Price
4545-137-106-2-C2	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Cadmium Type II	Spring Steel	0	7-8 Weeks	Price
4545-137-106-2-N	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Nickel	Spring Steel	4	In Stock - Ready To Ship!	Price
4545-137-106-2-S	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Silver	Spring Steel	0	5-6 Weeks	Price
4545-137-106-2-T	1.375	0.687	1.062	0.032	1.527	0.510	0.880	0.188	0.312	0.250	0.250	4-40	Bright Tin	Spring Steel	0	5-6 Weeks	Price
