Bus Bar

A bus bar provides a means of connecting a multiple of terminals with one solid piece, as opposed to individually wiring the terminals. A bus bar saves assembly time and labor and is normally used on terminal blocks.

Use our Quick Search below to source copper bus bars from our wide selection of options.

Material: Copper

Customary Finishes: Nickel (N), Tin (T1) (other finishes also available)

Not all available materials or finishes are listed in our catalog for every part number. If you require a different material, finish or size, please submit a quote.

If you need additional information on your particular bus bar application click on one of the links below:
     View our material & finish specification sheets
     View metallic material characteristic information
     View finish characteristic information

Did you know?Seastrom has extensive custom capabilities in Precision Stamping, CNC Machining, Multi-Spindle Screw Machining, Four-Slide, Water Jet & Laser Part Marking to meet all your requirements. Products can be manufactured in most metallic and non-metallic materials, even hard to find materials. Ask us today!

Quick Search

Material

Min D

Max D

Min E

Max E

All Available PartsOnly Parts in Stock

Don't see what you need?

Click here to revise your search

Click here to request a custom quote

Click on the Column Name to re-sort data.

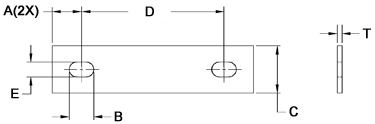

Dimensions in Inches

Product Number	A	B	C	D	E	T	Circular Mil Area	Material	Finish	Stock	Leadtime	Get Pricing
5002-1-10	0.250	0.281	0.375	1.250	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-11	0.250	0.281	0.375	1.375	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-12	0.250	0.281	0.375	1.500	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-13	0.250	0.281	0.375	1.625	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-14	0.250	0.281	0.375	1.750	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-15	0.250	0.281	0.375	1.875	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-16	0.250	0.281	0.375	2	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-17	0.250	0.281	0.375	2.125	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-18	0.250	0.281	0.375	2.250	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-19	0.250	0.281	0.375	2.375	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-20	0.250	0.281	0.375	2.500	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-3	0.250	0.281	0.375	0.375	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-4	0.250	0.281	0.375	0.500	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-40	0.250	0.281	0.375	5	0.188	0.016	7447	Copper		1354	In Stock - Ready To Ship!	Price
5002-1-40-T	0.250	0.281	0.375	5	0.188	0.016	7447	Copper	Bright Tin	0	4-5 Weeks for <= 1354 7-8 Weeks for > 1354	Price
5002-1-5	0.250	0.281	0.375	0.625	0.188	0.016	7447	Copper		992	In Stock - Ready To Ship!	Price
5002-1-6	0.250	0.281	0.375	0.750	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-7	0.250	0.281	0.375	0.875	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-8	0.250	0.281	0.375	1	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-9	0.250	0.281	0.375	1.125	0.188	0.016	7447	Copper		0	6-7 Weeks	Price
5002-1-9-N	0.250	0.281	0.375	1.125	0.188	0.016	7447	Copper	Nickel	0	5-6 Weeks	Price
5002-2-10	0.250	0.281	0.375	1.250	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-11	0.250	0.281	0.375	1.375	0.188	0.032	14894	Copper		683	In Stock - Ready To Ship!	Price
5002-2-12	0.250	0.281	0.375	1.500	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-13	0.250	0.281	0.375	1.625	0.188	0.032	14894	Copper		0	3-4 Weeks	Price
5002-2-14	0.250	0.281	0.375	1.750	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-15	0.250	0.281	0.375	1.875	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-16	0.250	0.281	0.375	2	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-17	0.250	0.281	0.375	2.125	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-18	0.250	0.281	0.375	2.250	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-19	0.250	0.281	0.375	2.375	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-20	0.250	0.281	0.375	2.500	0.188	0.032	14894	Copper		0	3-4 Weeks	Price
5002-2-3	0.250	0.281	0.375	0.375	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-4	0.250	0.281	0.375	0.500	0.188	0.032	14894	Copper		248	In Stock - Ready To Ship!	Price
5002-2-4-T1	0.250	0.281	0.375	0.500	0.188	0.032	14894	Copper	Bright Tin	0	4-5 Weeks for <= 248 7-8 Weeks for > 248	Price
5002-2-5	0.250	0.281	0.375	0.625	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-5-N	0.250	0.281	0.375	0.625	0.188	0.032	14894	Copper	Nickel	0	5-6 Weeks	Price
5002-2-6	0.250	0.281	0.375	0.750	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-6-T1	0.250	0.281	0.375	0.750	0.188	0.032	14894	Copper	Bright Tin	0	Call for Delivery	Price
5002-2-7	0.250	0.281	0.375	0.875	0.188	0.032	14894	Copper		0	6-7 Weeks	Price
5002-2-7-T1	0.250	0.281	0.375	0.875	0.188	0.032	14894	Copper	Bright Tin	0	4-5 Weeks	Price
5002-2-8	0.250	0.281	0.375	1	0.188	0.032	14894	Copper		0	3-4 Weeks	Price
5002-2-9	0.250	0.281	0.375	1.125	0.188	0.032	14894	Copper		208	In Stock - Ready To Ship!	Price
5002-3-10	0.250	0.281	0.375	1.250	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-11	0.250	0.281	0.375	1.375	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-12	0.250	0.281	0.375	1.500	0.188	0.051	24364	Copper		297	In Stock - Ready To Ship!	Price
5002-3-13	0.250	0.281	0.375	1.625	0.188	0.051	24364	Copper		190	In Stock - Ready To Ship!	Price
5002-3-14	0.250	0.281	0.375	1.750	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-15	0.250	0.281	0.375	1.875	0.188	0.051	24364	Copper		1071	In Stock - Ready To Ship!	Price
5002-3-16	0.250	0.281	0.375	2	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-17	0.250	0.281	0.375	2.125	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-18	0.250	0.281	0.375	2.250	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-18-T	0.250	0.281	0.375	2.250	0.188	0.051	24364	Copper	Bright Tin	0	5-6 Weeks	Price
5002-3-19	0.250	0.281	0.375	2.375	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-20	0.250	0.281	0.375	2.500	0.188	0.051	24364	Copper		65	In Stock - Ready To Ship!	Price
5002-3-3	0.250	0.281	0.375	0.375	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-4	0.250	0.281	0.375	0.500	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-5	0.250	0.281	0.375	0.625	0.188	0.051	24364	Copper		1191	In Stock - Ready To Ship!	Price
5002-3-5-T	0.250	0.281	0.375	0.625	0.188	0.051	24364	Copper	Bright Tin	0	5-6 Weeks	Price
5002-3-6	0.250	0.281	0.375	0.750	0.188	0.051	24364	Copper		1209	In Stock - Ready To Ship!	Price
5002-3-6-T	0.250	0.281	0.375	0.750	0.188	0.051	24364	Copper	Bright Tin	0	5-6 Weeks	Price
5002-3-7	0.250	0.281	0.375	0.875	0.188	0.051	24364	Copper		0	6-7 Weeks	Price
5002-3-8	0.250	0.281	0.375	1	0.188	0.051	24364	Copper		0	3-4 Weeks	Price
5002-3-8-T1	0.250	0.281	0.375	1	0.188	0.051	24364	Copper	Bright Tin	0	7-8 Weeks	Price
5002-3-9	0.250	0.281	0.375	1.125	0.188	0.051	24364	Copper		0	3-4 Weeks	Price
